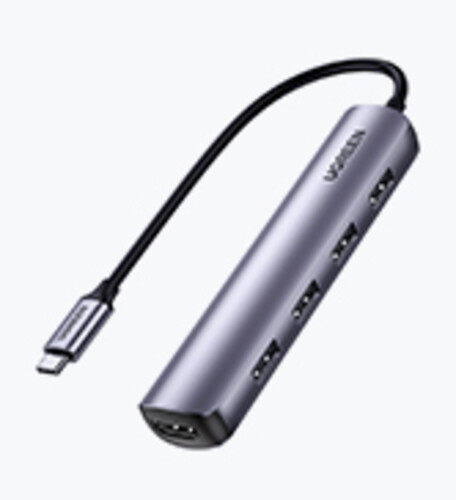

Specification:
Input Port and Input Port and Specifications:
- 1xUSB-C Male: Compliant with USB 3.0 standards, with transfer rates up to 5Gbps; DP1.2a, HDCP2.2, supports resolutions up to 3840*2160/30Hz, 2560*1440@60Hz, 1920*1080@120Hz; backward compatible with low resolution, computer connection, data/video functionality
Output Ports and Specifications:
Grid
- 4xUSB3.0 Female: A USB3.0 standard with a transfer rate up to 5Gbps, compatible with USB 2.0/1.1, and supports the BC1.2 protocol via USB-A interface
- 1xHDMI Female: HDMI 1.4b, HDCP 1.4, supports 3D but does not support HDR, supports
- Indicator Light Instructions: None
- Power Requirements: None
Product Power Consumption:
A4: Empty load ˜ 110mA Insert HDMI ˜ 180mA
A5: Empty load ˜ 160 mA, inserted into HDMI ˜ 210 mA
- Video format: RGB 8/10/12 bpc; (YCbCr4:4:4, YCbCr4:2:2) 8/10/12 bpc;
- Audio Format: DTS-HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR);
- Audio sampling rate up to 192kHz/24bit;
- USB ports with a total current limit of 2A for 4 USB 3.0 ports
- Operating temperature: 0°C~45°C
- Storage temperature: -10°C to 50°C
- Measured temperature: Environment 25°C (operating at full load for 12 hours), with the aluminum casing temperature reaching up to around 38°C
- Driver-free installation
- Index Project Content
- Supported Systems: Windows 10/8.1/8/7/Vista/XP; MAC
